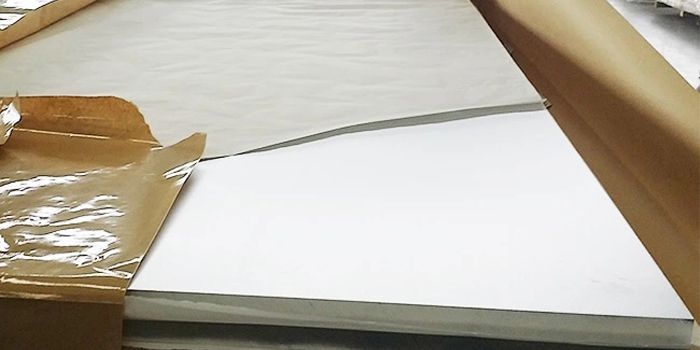

6111 aluminum plate
6111 aluminum alloy sheet is the earliest and most important aluminum alloy material for ABS battery plate. It has good corrosion resistance and precipitation hardening.
Specification of ABS Battery plate - 6111-T4
Alloy | Temper | Thickness | Width |
6111 | T4 | 0.2-8.0mm | 1000-2600mm |
Chemical composition of 6111 aluminum sheet
Alloy | Si | Fe | Mn | Mg | Cr | Zn | Ti | Other total |
6111 | 0.7-1.1 | 0.4 | 0.15-0.45 | 0.5-1 | 0.1 | 0.15 | 0.1 | 0.15 |
Physical, mechanical and thermal properties of 6111 T4 aluminum plate
Properties | Metric | Imperial |
Density | 2.71 g/cm³ | 0.0979 lb/in³ |
Melting point (T4) | 585-650°C | 1085-1202°F |
Tensile strength | 280 MPa | 40610 psi |
Yield strength | 150 MPa | 21755 psi |
Elongation at break | 26% | 26% |
Shear modulus | 26 GPa | 3770 ksi |
Poisson’s ratio | 0.33 | 0.33 |
Thermal conductivity | 154 W/mK | 1068 BTU in/hr.ft².°F |

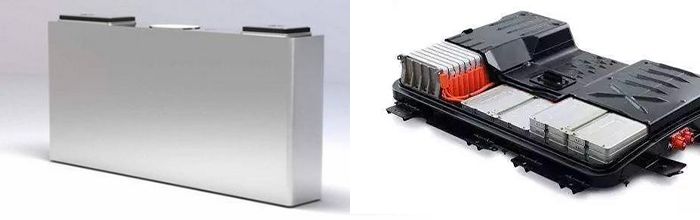

Applications of 6111 aluminum alloy in automobile
Aluminum 6111 alloy coil and sheet is mainly used as a ABS Battery plate. It can also to made into exposed body panels so as to reduce the overall weight of automobiles.
Price of ABS Battery plate - 6111-T4
6111 aluminum alloy is a special alloy, so its price is higher than regular alloys of 6xxx series, and it fluctuates with aluminium ingot price and manufacturing cost. Welcome to send details!
