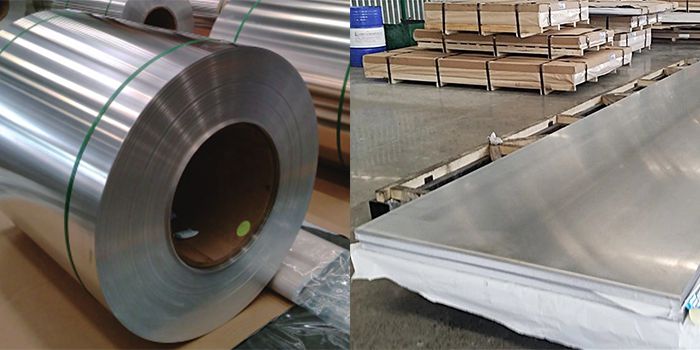

6014 aluminum sheet coil
6014 aluminum race car sheet metal is a deformed aluminum alloy containing a small amount of vanadium, which endows the alloy with a fine recrystallized micro structure after annealing. Race car materials should be strong and light to realize speed and hardness of a car, 6014 aluminum coil just meets the requirements. 6014 is an aluminum alloy with magnesium and silicon as the main alloying elements and Mg2Si phase as the strengthening phase. High quality 6014 aluminum sheet for cars is featured by medium strength, high corrosion resistance, good welding performance, unchanged corrosion performance of the welding zone , and good formability and process performance. The sheet finds its applications in outer panels of race cars. As the thickness of the sheet is small, it can also be made into coil type, known as the 6014 aluminum coil for cars.
Chemical Composition of aluminum race car sheet metal 6014
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti |
6014 | 0.3-0.6 | 0.35 | 0.25 | 0.05-0.20 | 0.40-0.80 | 0.20 | 0.10 | 0.10 |
Specification of 6014 aluminum sheet for cars
Alloy | Temper | Thickness | Width |
6014 | T4/T4P | 0.5-1.5mm | 1200-2650mm |
Mechanical Properties of 6014 aluminum sheet for race cars
Alloy | Temper | Tensile strength Rm(Mpa) | Yield strength Rp0.2(Mpa) | Elongation at break A80(%) | Uniform elongation Ag (%) | Plastic strain ratio | Strain hardening exponent |
6014 | T4/T4P | 195-260 | 95-135 | ≥23 | ≥19 | ≥0.6 | ≥0.24 |

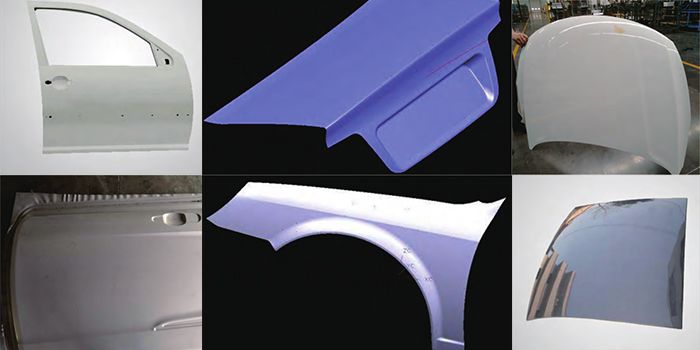

Application of 6014 aluminum plate in race cars
The 6014 aluminum sheet for race cars are applied to the engine cover, roof, door panel, trunk outer panel or wing panel of a race car.
Price of aluminum race car sheet metal
An aluminum sheet for race cars can be of 6014, 6101, 5182, 5754, 5052, 7075 etc. These alloys have difference prices in varied time. Please contact us for a specific quotation!
